Working with results#

The OCR predictor returns a Document. This page shows how to navigate it, turn its geometries into pixels, visualize the predictions, and save them for later.

Navigate the tree#

from doctr.io import DocumentFile
from doctr.models import ocr_predictor

predictor = ocr_predictor(pretrained=True)
result = predictor(DocumentFile.from_pdf("invoice.pdf"))

page = result.pages[0]
page.dimensions  # (height, width) of the page image, in pixels: (1684, 1191)
page.page  # the page image itself, as a NumPy array
page.blocks  # list of Block
page.orientation  # {"value": ..., "confidence": ...} with detect_orientation=True
page.language  # {"value": ..., "confidence": ...} with detect_language=True
page.layout  # list of LayoutElement with detect_layout=True
page.tables  # list of Table with detect_tables=True

Most of the time, you want a flat list of words. A small generator does the job:

def iter_words(document):
    for page_idx, page in enumerate(document.pages):
        for block in page.blocks:
            for line in block.lines:
                for word in line.words:
                    yield page_idx, word


words = [word.value for _, word in iter_words(result)]

Every element also has a render() method that returns its text: line.render() joins the words of a line with spaces, page.render() returns the whole page.

Filter by confidence#

word.confidence tells how sure the recognition model is. Use it to send doubtful words to a human, or to drop noise:

doubtful = [(page_idx, word.value, word.confidence) for page_idx, word in iter_words(result) if word.confidence < 0.5]

Tip

The way character probabilities are combined into word.confidence is configurable: see confidence scores.

Convert coordinates to pixels#

Geometries are relative to the page size, with (0, 0) at the top-left corner. Multiply them by the page dimensions to get pixels:

Straight boxes

import numpy as np

height, width = page.dimensions
(xmin, ymin), (xmax, ymax) = word.geometry

x0, y0 = int(xmin * width), int(ymin * height)
x1, y1 = int(xmax * width), int(ymax * height)

word_image = page.page[y0:y1, x0:x1]  # crop the word from the page

Rotated boxes

With assume_straight_pages=False, geometries are (4, 2) arrays of points:

import numpy as np

height, width = page.dimensions
polygon = np.asarray(word.geometry) * np.array([width, height])  # (4, 2) pixel coordinates

Find a value next to a keyword#

Combining positions and text lets you build simple extraction rules. For instance, to read the amount written to the right of Total:

def value_right_of(page, keyword):
    words = [w for block in page.blocks for line in block.lines for w in line.words]
    anchor = next(w for w in words if w.value.lower().startswith(keyword.lower()))
    (_, ay0), (ax1, ay1) = anchor.geometry
    center_y = (ay0 + ay1) / 2
    # Words on the same horizontal band, to the right of the keyword, sorted left to right
    candidates = [w for w in words if w.geometry[0][1] < center_y < w.geometry[1][1] and w.geometry[0][0] > ax1]
    return " ".join(w.value for w in sorted(candidates, key=lambda w: w.geometry[0][0]))


print(value_right_of(result.pages[0], "Total"))  # due 1,250.00 EUR

For forms and invoices with many fields, a KIE predictor trained on your fields is more robust than hand-written rules.

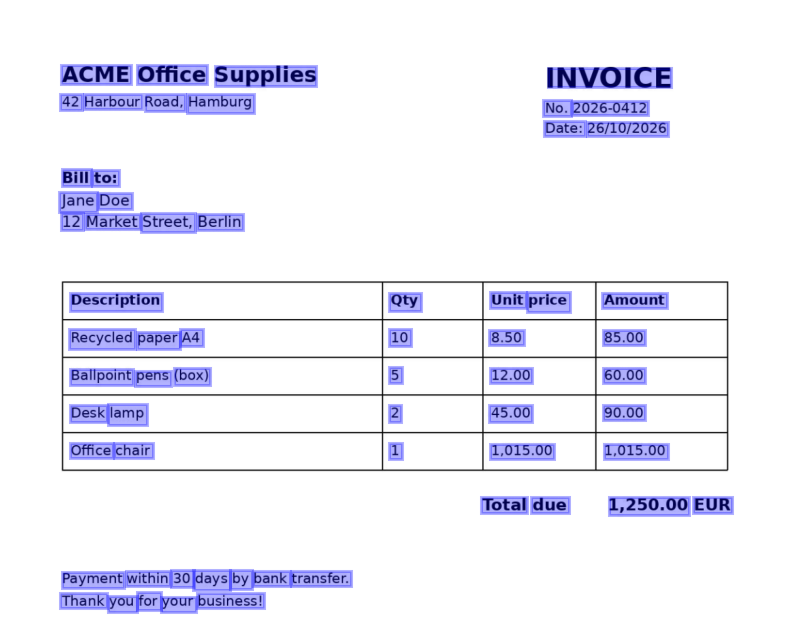

Visualize the predictions#

Interactive window

Requires the viz extra. Hover a box to see the word and its confidence:

result.show()  # all pages; or result.pages[0].show()

When the layout model ran, its regions are drawn as well (display_layout=False hides them).

Image file

visualize_page() returns a Matplotlib figure that you can save, e.g. on a server without display:

import matplotlib

matplotlib.use("Agg")  # no display needed
from doctr.utils.visualization import visualize_page

page = result.pages[0]
fig = visualize_page(page.export(), page.page, interactive=False, add_labels=False)
fig.savefig("predictions.png", bbox_inches="tight")

Rebuild the page from its predictions#

synthesize() draws the recognized words at their position on a blank page. It is a quick way to eyeball what was read, and where:

import matplotlib.pyplot as plt

synthetic_pages = result.synthesize()  # one image per page
plt.imshow(synthetic_pages[0])
plt.axis("off")
plt.show()

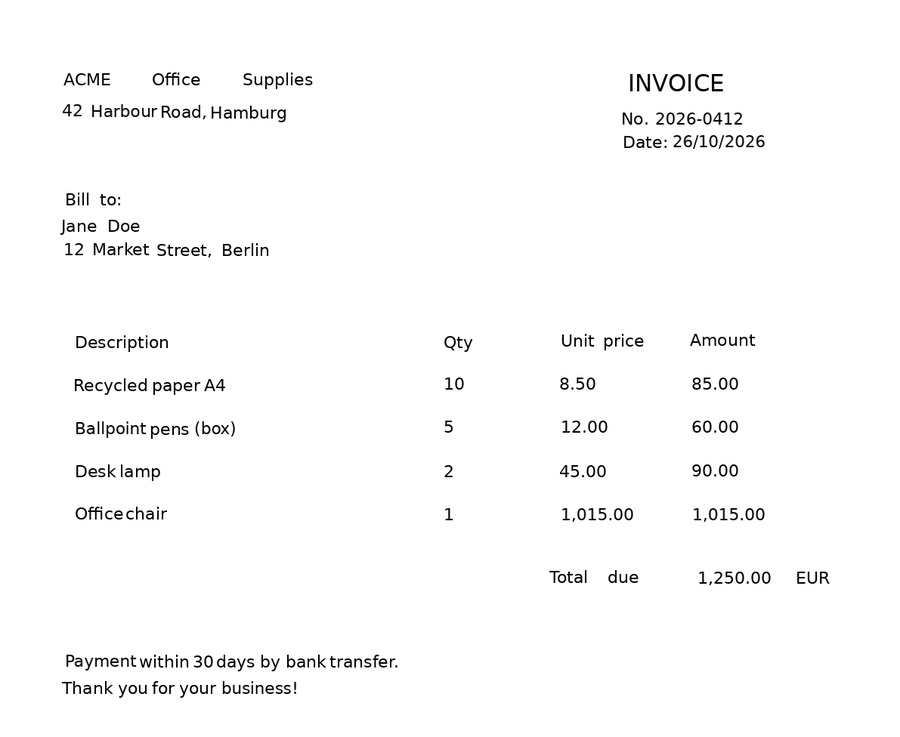

The invoice rebuilt from the predictions

Save and reload#

export() converts the result into a nested dictionary of plain Python types, ready for JSON. from_dict() rebuilds the Document from it:

import json

from doctr.io import Document

# Save
with open("invoice.json", "w") as f:
    json.dump(result.export(), f)

# ... later: reload
with open("invoice.json") as f:
    restored = Document.from_dict(json.load(f))

print(restored.render())

The page images are not part of the export. Pass them back with Document.from_dict(data, pages=pages) if you need them, e.g. to call show().
